350 Studio Amplifier Circuit Scheme and PCB Layout

Studio 350 Power Amplifier Circuit Diagram

Above scheme is the circuit diagram of 350 studio amplifier uses 4 pairs of transistor MJL21193 and MJL21194 as the main components for this circuit. This circuit requires symmetrical power supply to work.

The scheme and PCB layout provided here is for single channel (mono) application, build two similar circuit for stereo application.

You may download the detailed tutorial about how to build this circuit (with pictures). The link provided at the end of this post.

350 Studio Amplifier PCB Design Layout:

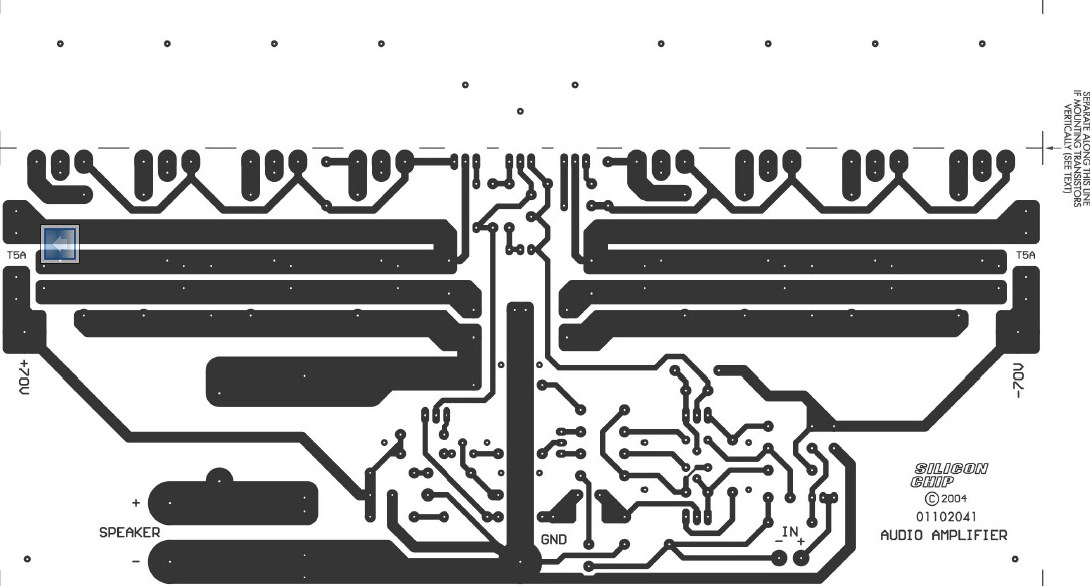

350 Studio Amplifier Copper PCB Layout

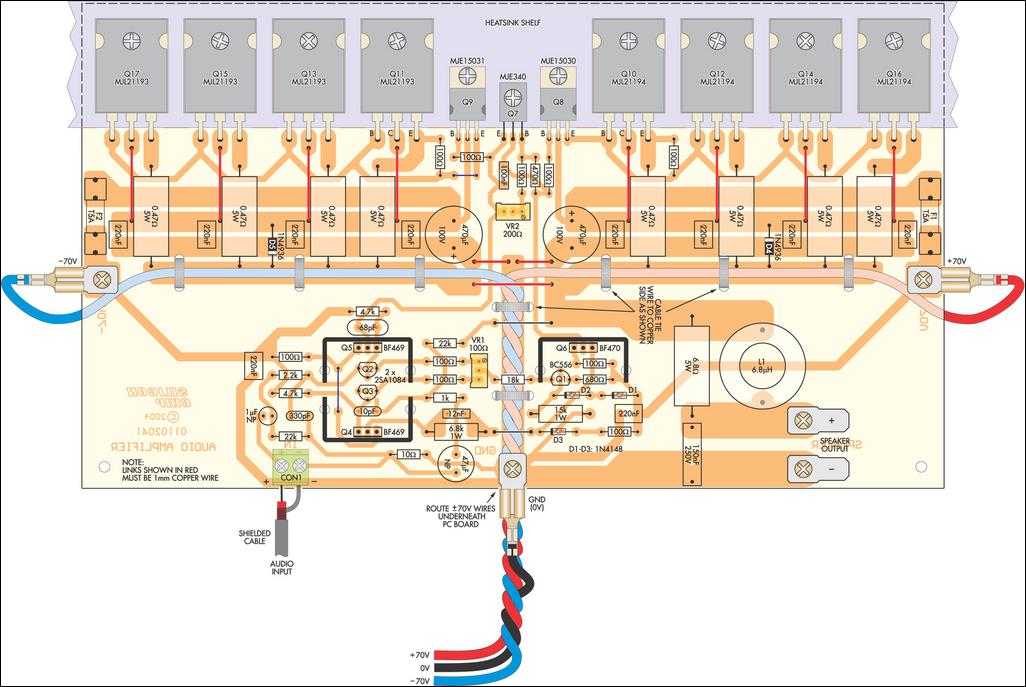

350 Studio Amplifier Top PCB – Components placement:

350 Studio Amplifier Top PCB Layout

Download tutorial with pictures:
ยป Download Here

Tags: 350 studio amplifier 350w amplifier MJL21193 circuit MJL21194 circuit
