100W Power Audio Amplifier Diagram based FET K134 and J49

100w mosfet amplifier diagram

Here is the 100W power audio amplifier circuit diagram build based on a pair of FET component on final amplifying process. The FET components using a pair of K134 and J49, the substitutes for these FETs are the combination of J162 and K1058. The output power will be about 100W at 8 ohms speaker. For stereo application, you should build two similar circuit.

The power supply which is used for this circuit is split / dual polarity type. This kind of circuit has three outputs that are positive, negative and ground. For stereo application, it’s better to double the power supply component (T1, C15 and C16), coz the stereo power amplifier consumes 2x energy than mono amplifier.

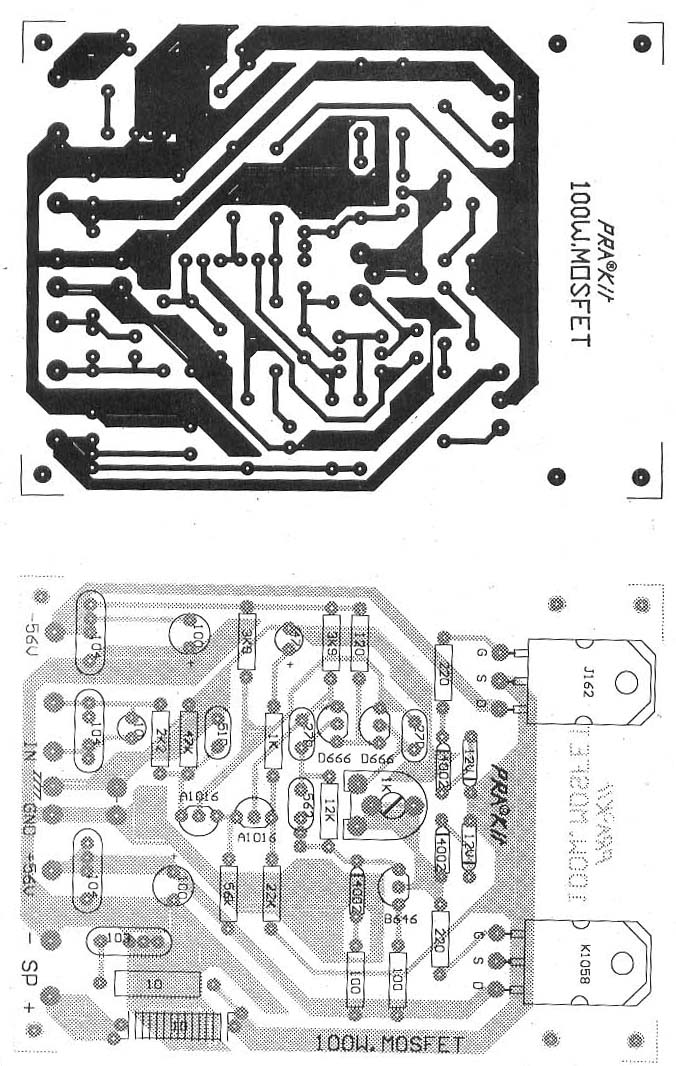

Then, here the PCB design for above 100W power audio amplifier circuit.

100w mosfet amplifier pcb design

Good luck

Tags: 100w amplifier fet amplifier J49 K134 power amplifier

Related Post "100W Power Audio Amplifier Diagram based FET K134 and J49"

400 Watt 70 Volt Amplifier
This is the schematic design of 400
150W Power Amplifier using Transistor
This is the circuit diagram of 150W
21W Class AB Audio Amplifier
This is the circuit design of 21W
  1. author

    joe11 months agoReply

    ii have a kmd gs45b 45watt solid state bass amp, made in England in late 80’s it has fet k134 amd jk49 on the circuit board…. i read that mos/fet amps aren’t subject to thermal runaway. i know nothing about this stuff…what does that mean? the amp is a combo rated at 8ohms (with 1—8ohm speaker in the cabinet with the amp. can i add a extra 8ohm external speaker to to the amp (which will equal 4ohms) without fear of overheating the amp? does not being subject to thermal runaway have anything to do with overheating of a solidstate guitar amp? thanks for your help,,, joe
