		<title>Guitar Pre-amp Circuit based TL072</title>
		<link>https://amplifiercircuit.net/guitar-preamp-based-tl-072.html</link>
					<comments>https://amplifiercircuit.net/guitar-preamp-based-tl-072.html#respond</comments>

		<dc:creator><![CDATA[Amplifier Circuit]]></dc:creator>
		<pubDate>Sat, 17 Sep 2011 06:18:36 +0000</pubDate>
				<category><![CDATA[Pre-amplifier]]></category>
		<category><![CDATA[audio pre amplifier]]></category>
		<category><![CDATA[guitar pre amp circuit]]></category>
		<category><![CDATA[Guitar Pre-amp Circuit based TL072]]></category>
		<category><![CDATA[Guitar preamp]]></category>
		<category><![CDATA[TL 072]]></category>
		<category><![CDATA[TL072 circuit]]></category>
		<guid isPermaLink="false">http://amplifiercircuit.net/?p=496</guid>

					<description><![CDATA[<p>This guitar pre amp circuit has a high input impedance unbalanced and two balanced outputs completely independent set to deal&#160;[&#8230;]</p>
<p>The post <a href="https://amplifiercircuit.net/guitar-preamp-based-tl-072.html">Guitar Pre-amp Circuit based TL072</a> appeared first on <a href="https://amplifiercircuit.net">Amplifier Circuit Design</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><a href="http://amplifiercircuit.net/guitar-preamp-based-tl-072.html/guitar-pre-amp-circuit" rel="attachment wp-att-497"><img data-recalc-dims="1" decoding="async" data-attachment-id="497" data-permalink="https://amplifiercircuit.net/guitar-preamp-based-tl-072.html/guitar-pre-amp-circuit" data-orig-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit.jpg?fit=1110%2C415&amp;ssl=1" data-orig-size="1110,415" data-comments-opened="1" data-image-meta="{&quot;aperture&quot;:&quot;0&quot;,&quot;credit&quot;:&quot;&quot;,&quot;camera&quot;:&quot;&quot;,&quot;caption&quot;:&quot;&quot;,&quot;created_timestamp&quot;:&quot;0&quot;,&quot;copyright&quot;:&quot;&quot;,&quot;focal_length&quot;:&quot;0&quot;,&quot;iso&quot;:&quot;0&quot;,&quot;shutter_speed&quot;:&quot;0&quot;,&quot;title&quot;:&quot;&quot;}" data-image-title="Guitar pre amp " data-image-description="&lt;p&gt;Guitar pre amp circuit diagram. The use of a type TL072 integrated circuit for the input stage is explained by the fact that it has a high input impedance (FET input) which allows to set the input impedance of assembly to the desired value, by 1Mohm, R1.&lt;/p&gt;

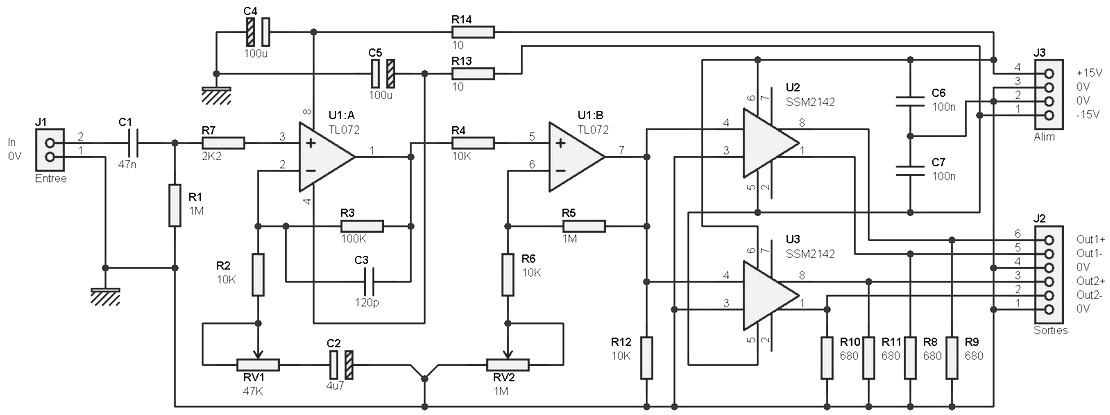

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit.jpg?resize=630%2C235&amp;ssl=1" class="aligncenter size-medium wp-image-497" title="Guitar pre amp " src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit-300x112.jpg?resize=300%2C112" alt="Guitar pre amp " width="300" height="112" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit.jpg?resize=300%2C112&amp;ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit.jpg?resize=1024%2C382&amp;ssl=1 1024w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/09/guitar-pre-amp-circuit.jpg?w=1110&amp;ssl=1 1110w" sizes="(max-width: 300px) 100vw, 300px" /></a>This guitar pre amp circuit has a high input impedance unbalanced and two balanced outputs completely independent set to deal high capacitive loads, and can therefore be used with long cables.</p>
<p><span id="more-496"></span>The guitar pre amp assembly does not really particular comment. The use of a type TL072 integrated circuit for the input stage is explained by the fact that it has a high input impedance (FET input) which allows to set the input impedance of assembly to the desired value, by 1Mohm, R1. Amplification is carried out by two separate stages to ensure a better stability and bandwidth when the gain is at its maximum. The completion of the two balanced outputs is facilitated by the use of line driver circuits specialized for this purpose in classical SSM2142. You will notice the presence of 680 ohm resistors on each output of the SSM2142. It is possible to do without it, provided to connect the terminals 7 and 8 together, and the terminals 1 and 2 together. The manufacturer instructions (datasheet) is not very precise about this, but I noticed better performance in distortion at high gain (&gt; 50dB) &#8230; but in all honesty, through action, because the ear I have find any difference. Do as you wish.</p>
<p><strong>Notes :</strong><br />
&#8211; Wire R7 and R3 as close to U1: A, R4 and R5 and the closest to U1: B<br />
&#8211; If you see a parasitic oscillation when the gain is maximum, add a capacitor of 22pF to 120pF in parallel with the resistor R5.<br />
&#8211; Minimize the cable length between the input connector and the input assembly.<br />
&#8211; The SSM2142 can be replaced by DRV134, it has the same pinout and is a bit more efficient.<br />
&#8211; The power supply must provide a dual voltage of + /-15V, and be perfectly stable.<br />
thanks</p>
<p>The post <a href="https://amplifiercircuit.net/guitar-preamp-based-tl-072.html">Guitar Pre-amp Circuit based TL072</a> appeared first on <a href="https://amplifiercircuit.net">Amplifier Circuit Design</a>.</p>
]]></content:encoded>

					<wfw:commentRss>https://amplifiercircuit.net/guitar-preamp-based-tl-072.html/feed</wfw:commentRss>
			<slash:comments>0</slash:comments>


		<post-id xmlns="com-wordpress:feed-additions:1">496</post-id>	</item>
		<item>
		<title>Simple Audio Booster</title>
		<link>https://amplifiercircuit.net/simple-audio-booster.html</link>
					<comments>https://amplifiercircuit.net/simple-audio-booster.html#comments</comments>

		<dc:creator><![CDATA[Amplifier Circuit]]></dc:creator>
		<pubDate>Thu, 11 Aug 2011 07:13:33 +0000</pubDate>
				<category><![CDATA[Audio Amplifier]]></category>
		<category><![CDATA[Pre-amplifier]]></category>
		<category><![CDATA[audio booster]]></category>
		<category><![CDATA[audio booster circuit]]></category>
		<category><![CDATA[audio pre amplifier]]></category>
		<category><![CDATA[simple audio amplifier]]></category>
		<guid isPermaLink="false">http://amplifiercircuit.net/?p=235</guid>

					<description><![CDATA[<p>This Audio booster circuit is very simple and can be applied to fm tuner or audio pre amplifier. The 2N3392 &#160;[&#8230;]</p>
<p>The post <a href="https://amplifiercircuit.net/simple-audio-booster.html">Simple Audio Booster</a> appeared first on <a href="https://amplifiercircuit.net">Amplifier Circuit Design</a>.</p>
]]></description>
										<content:encoded><![CDATA[<p><a href="http://amplifiercircuit.net/simple-audio-booster.html/audio-booster" rel="attachment wp-att-237"><img data-recalc-dims="1" fetchpriority="high" decoding="async" data-attachment-id="237" data-permalink="https://amplifiercircuit.net/simple-audio-booster.html/audio-booster" data-orig-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/08/audio-booster.jpg?fit=502%2C379&amp;ssl=1" data-orig-size="502,379" data-comments-opened="1" data-image-meta="{&quot;aperture&quot;:&quot;0&quot;,&quot;credit&quot;:&quot;&quot;,&quot;camera&quot;:&quot;&quot;,&quot;caption&quot;:&quot;&quot;,&quot;created_timestamp&quot;:&quot;0&quot;,&quot;copyright&quot;:&quot;&quot;,&quot;focal_length&quot;:&quot;0&quot;,&quot;iso&quot;:&quot;0&quot;,&quot;shutter_speed&quot;:&quot;0&quot;,&quot;title&quot;:&quot;&quot;}" data-image-title="Audio Booster" data-image-description="&lt;p&gt;Booster for audio circuit diagram. Potentiometer R5 of 100K is a linear type with an on/off switch attached. The value of C1 may need to be between 0.05µF and 0.1µF (47nF/100nF). Experiment with the value for best performance.&lt;/p&gt;
" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/08/audio-booster.jpg?resize=502%2C303&amp;ssl=1" class="aligncenter size-medium wp-image-237" title="Audio Booster" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/08/audio-booster-300x226.jpg?resize=300%2C226" alt="The audio booster" width="300" height="226" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/08/audio-booster.jpg?resize=300%2C226&amp;ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2011/08/audio-booster.jpg?w=502&amp;ssl=1 502w" sizes="(max-width: 300px) 100vw, 300px" /></a>This Audio booster circuit is very simple and can be applied to fm tuner or audio pre amplifier. The 2N3392  is a low-noise type transistor in TO-92 case. The transistor can can be replaced by a NTE199 or ECG199. If you wish to use a TUN, cross reference the parameters with one of the units from this list : TUP-TUN</p>
<p><span id="more-235"></span>Potentiometer R5 of 100K is a linear type with an on/off switch attached. The value of C1 may need to be between 0.05µF and 0.1µF (47nF/100nF). Experiment with the value for best performance.</p>
<pre>Parts list :
R1 : 47K
R2 : 470K
R3 : 10K
R4 : 560
R5 : 100K potmeter+switch Linear
R6 : 270
C1 : Capacitor, .05-.1μF Ceramic, 50V
C2 : Capacitor, 0.1μF Ceramic, 50V
C3 : Capacitor, 33μF/25V Electrolytic
Q1 : 2N3392 Transistor, NPN
LED1 LED, red 276-033 Ultra-Bright</pre>
