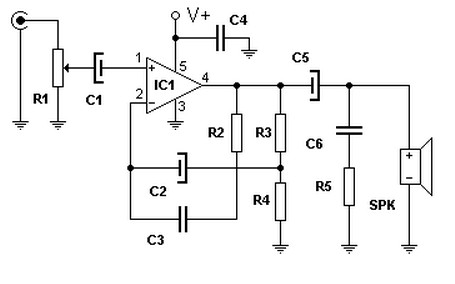

10 W Audio Amplifier based TDA 2003

Amplifier Circuit — Wed, 23 May 2012 13:35:00 +0000

With only one active integrated circuit TDA 2003 as component this circuit can provide up to 10W of audio power to the load which can be between 2 and 8 ohm.

As usual integrated circuit TDA2003, should be placed with which appropriate heat sink to prevent damage to internal components on the temperature of the IC. This 10 W audio amplifier circuit requires a current to voltage V max 18VDC 2A to work correctly.

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/10W-audio-amplifer.jpg?resize=455%2C274&ssl=1" class="aligncenter size-medium wp-image-1458" title="10W audio amplifer" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/10W-audio-amplifer-300x187.jpg?resize=300%2C187" alt="10W audio amplifer" width="300" height="187" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/10W-audio-amplifer.jpg?resize=300%2C187&ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/10W-audio-amplifer.jpg?w=455&ssl=1 455w" sizes="(max-width: 300px) 100vw, 300px" />As usual integrated circuit TDA2003, should be placed with which appropriate heat sink to prevent damage to internal components on the temperature of the IC.

10 W audio amplifier circuit requires a current to voltage V max 18VDC 2A to work correctly.

The low power audio amplifier is obtained at the optimal point of the work load of 4 Ω. These entries must be at least 1Vpp to achieve this performance.

10 W Audio Amplifier parts list :

R1 : 100 k potentiometer
R2 : 47 Ω
R3 : 220 Ω
R4 : 2.2 Ω
R5 : 1 Ω
C1 : 2.2 uF
C2 : 470 uF
C4 : 100 nF
C5 : 1000 uF
C6 : 100 nF
C3 : 47 nF
IC1 : TDA2003
4 Ω speaker SPK

The post 10 W Audio Amplifier based TDA 2003 appeared first on Amplifier Circuit Design.

100W Audio Amplifier with Integrated Circuit

Amplifier Circuit — Thu, 03 May 2012 19:36:40 +0000

The circuit allows an output stage operating at even 2 ohms impedance and gain power 150W. For stability and safety this system decided to make it work with 4 ohm speakers so we gain 100W RMS power.

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/100-W-amplifier-based-M12CLK.jpg?resize=444%2C268&ssl=1" class="aligncenter size-medium wp-image-1423" title="100 W amplifier based M12CLK" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/100-W-amplifier-based-M12CLK-300x186.jpg?resize=300%2C186" alt="100 W amplifier based M12CLK" width="300" height="186" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/100-W-amplifier-based-M12CLK.jpg?resize=300%2C186&ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/100-W-amplifier-based-M12CLK.jpg?w=444&ssl=1 444w" sizes="(max-width: 300px) 100vw, 300px" />Almost all of the audio power amplifier if using integrated circuit amplifier as circuit shown here which is use M12CLK is an power operational amplifier. It allows an output stage operating at even 2 ohms impedance and gain power 150W. For stability and safety this system decided to make it work with 4 ohm speakers so we gain 100W RMS power.

The coil L at the output is formed by 14 turns of wire nr. The separation of the coils is not critical and might leave one beside the next.

The transformer of the power supply must provide 24v + 24v AC in its secondary with a current of 5A for one stage (mono) or 10A for two stages (stereo). While four diodes can be used to make the source 15A is recommended to use a rectifier bridge metal and placed in the corresponding heat sink.

Given their unusual 1.1k resistor values should be accurate. While the output resistance (in parallel with the coil) must be at least 2W of power.

Electrolytic capacitors should be 50V or 63V.

The post 100W Audio Amplifier with Integrated Circuit appeared first on Amplifier Circuit Design.

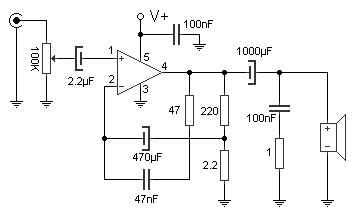

10W Amplifier for portable cd players

Amplifier Circuit — Tue, 17 Apr 2012 12:24:23 +0000

With only one active component of TDA2003 integrated circuit and a single supply source of 8 to 18 volts, this amplifier circuit can provide up to 10W of power to the load which can be between 2 and 8 ohm.

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?resize=359%2C217&ssl=1" class="aligncenter size-medium wp-image-1381" title="10W portable cd player amplifier" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier-300x181.jpg?resize=300%2C181" alt="10W portable cd player amplifier" width="300" height="181" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?resize=300%2C181&ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?w=359&ssl=1 359w" sizes="auto, (max-width: 300px) 100vw, 300px" />This 10W Amplifier is ideal to drive medium size speakers and use it for a portable CD player or mp3 player. With only one active component of TDA2003 integrated circuit and a single supply source of 8 to 18 volts, this amplifier circuit can provide up to 10W of power to the load which can be between 2 and 8 ohm.

Clearly an integrated circuit, TDA2003, must be mounted with the proper heat sink to prevent damage to internal components from overheating.

At full power the circuit requires 2A to work properly.

10W power can be obtained optimally with 12V 2A and 4 ohm loads. These input must be at least 1Vpp to achieve this performance.

10W Amplifier Parts list :
Resistors :
100K variable
47 ohm
220 ohm
2.2 ohm
1 ohm
Capacitors :
2.2uF
470uF
47nF
100nF (2)
1000uF
IC : TDA 2003
