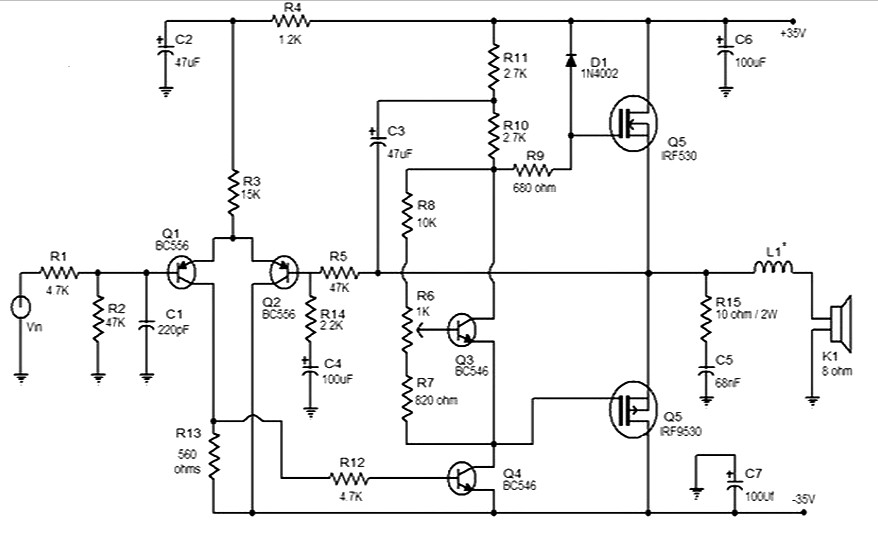

50 watt Mosfet amplifier circuit Output is connected to a speaker using inductor L1. Combination network of C5 and R15 are intended for noise reduction. Capacitors C6 and C7 are power supply filter. R6 is set to adjust the quiescent current.

50 watt Mosfet amplifier Parts list :
R1, R12 : 4.7K
R2 : 47K
R3 : 15 K
R4 : 1.2K
R5 : 47K
R6 : 1K var
R7 : 820 ohm
R8 : 10K
R9 : 680 ohm
R10, R11 : 2.7K
R13 : 560 ohm
R14 : 2.2K
R15 : 10 ohm 2W
C1 : 220pF
C2, C3 : 47uF
C4, C6, C7 : 100uF
C5 : 68nF
D1 : 1N4002
Q1, Q2 : BC556
Q3, Q4 : BC546
Q5 : IRF530
Q6 : IRF9530
K1 : 8 ohm

Note:
Assemble the circuit on a good quality PCB.
Use the + /-35V DC dual power supply to power the circuit.
To make the L1 12turns enamelled copper wire on a diameter of 1 cm
C6 and C7 should be 50V; other electrolytes can be 10 or 15V.
Heat sink is required for the MOSFET. A 8x4x4 inch finned heatsink.

The post 50 watt Mosfet amplifier appeared first on Amplifier Circuit Design.

MOSFETs are available in a very wide range in the PNP and NPN, the voltage from 100 to 200 volts or more, additional models (such as bipolar). Model commonly used in power amplifiers are 10N16, 10P16, IRFP140, IRFP9140, IRFP240, IRFP9240, 2SK135, 2SJ50, 2SK1530, 2SJ201. In this project, points A and C are connected to the output of the driver stage, point B is to counter-reaction and the point D the mass driver. Board is planned for the case TO3P transistors, it will slightly bend the foot for TO220-type packages.

Set the quiescent current (of about 100 mA per MOSFET) is an adjustable potentiometer of 250 ohms is placed between points A and C, without any other complications. It is always possible to use other conventional systems. Zener diode is provided to protect the MOSFET with a very simple system, for better system you can try more complex systems (+ 1N4148 zener zener in series + series resistance,…). Traditional Rx resistor wirewound .22 ohm 5 watt resistor is replaced with a 5 to 1.2 Ohm 1 watt carbon layers are connected in parallel to avoid the effects of self. Cx capacitors should be placed in accordance with the compensation that will be made, pcb is provided for all cases.

Parts list :
R1, R2, R3, R4 = 100 to 470 Ohms 1 / 4 W metal film
R5 = 10 ohm 1 watt carbon
Rx = 1.2 Ohm 1 W carbon
C1, C2 = 100 uF 100 Volts
C3 = 220 nF 100 Volts
Cx = ceramic capacitor (value depends on the compensation to be made, see table)
D1, D2 = 10 Volt zener diode 400 mW
T1, T2 = example IRFP140 (100 V), IRFP240 (200 V)
T3, T4 = example IRFP9140 (100 V), IRFP9240 (200 V)

Note : This project has not yet been tested.

The post Amplifier Circuit using MOSFET Output Stage appeared first on Amplifier Circuit Design.
