High quality 10W Audio Amplifier

Amplifier Circuit — Wed, 30 May 2012 01:03:52 +0000

As you can see on the circuit, a class AB audio amplifier IC requires only a few external components. And this series is also very easy to build. 10W stereo amplifier circuit requires a stable power supply with a voltage of 18 V and 1A current needs.

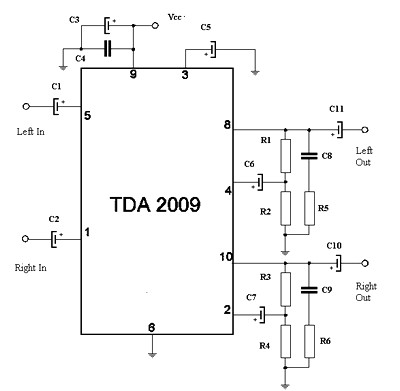

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/high-quality-10w-audio-amplifier.jpg?resize=400%2C241&ssl=1" class="aligncenter size-medium wp-image-1464" title="High quality 10w audio amplifier" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/high-quality-10w-audio-amplifier-300x293.jpg?resize=300%2C293" alt="Hi Fi audio amplifier" width="300" height="293" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/high-quality-10w-audio-amplifier.jpg?resize=300%2C293&ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/05/high-quality-10w-audio-amplifier.jpg?w=400&ssl=1 400w" sizes="(max-width: 300px) 100vw, 300px" />The main components of this high quality 10W stereo power amplifier circuit is uses TDA 2009 which is a class AB Audio Power Amplifier. IC TDA 2009 is specifically designed for high quality stereo applications such as HI-FI and music center.

As you can see on the circuit, this class AB amplifier IC requires only a few external components. And this 10 W audio amplifier circuit is also very easy to build. This 10W stereo amplifier circuit requires a stable power supply with a voltage of 18 V and 1A current needs.

High quality 10W Audio Amplifier parts list :

R1 1.3 kΩ	C1 2.2 µF 35V	IC1 TDA2009
R2 18 Ω	C2 2.2 µF 35V
R3 1.3 kΩ	C3 100 µF 35V
R4 18 Ω	C4 100 nF ceramic
R5 1 Ω 3 W	C5 22 µF 35V
R6 1 Ω 3W	C6 220 µF 35V
	C7 220 µF 35V
	C8 100 nF
	C9 100 nF
	C10 2.2 µF 35V
	C11 2.2 µF 35V

The post High quality 10W Audio Amplifier appeared first on Amplifier Circuit Design.

10W Amplifier for portable cd players

Amplifier Circuit — Tue, 17 Apr 2012 12:24:23 +0000

With only one active component of TDA2003 integrated circuit and a single supply source of 8 to 18 volts, this amplifier circuit can provide up to 10W of power to the load which can be between 2 and 8 ohm.

" data-image-caption="" data-large-file="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?resize=359%2C217&ssl=1" class="aligncenter size-medium wp-image-1381" title="10W portable cd player amplifier" src="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier-300x181.jpg?resize=300%2C181" alt="10W portable cd player amplifier" width="300" height="181" srcset="https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?resize=300%2C181&ssl=1 300w, https://i0.wp.com/amplifiercircuit.net/wp-content/uploads/2012/04/10W-portable-cd-player-amplifier.jpg?w=359&ssl=1 359w" sizes="(max-width: 300px) 100vw, 300px" />This 10W Amplifier is ideal to drive medium size speakers and use it for a portable CD player or mp3 player. With only one active component of TDA2003 integrated circuit and a single supply source of 8 to 18 volts, this amplifier circuit can provide up to 10W of power to the load which can be between 2 and 8 ohm.

Clearly an integrated circuit, TDA2003, must be mounted with the proper heat sink to prevent damage to internal components from overheating.

At full power the circuit requires 2A to work properly.

10W power can be obtained optimally with 12V 2A and 4 ohm loads. These input must be at least 1Vpp to achieve this performance.

10W Amplifier Parts list :
Resistors :
100K variable
47 ohm
220 ohm
2.2 ohm
1 ohm
Capacitors :
2.2uF
470uF
47nF
100nF (2)
1000uF
IC : TDA 2003
