1500 watt RF Amplifier parts list :

C1,2-0.01 µF silver mica transmitting capacitor
C3-1500 pF screen grid bypass (internal to tube socket)
C4-2000 pF, S kV, two 858S capacitors in parallel, Centralab
C5-Vacuum variable, 10 to 300 pF, 10 kV, Jennings UCS-300 (plate tuning)
C6-300 pF, 5 kV, Centralab-type 858S
C7-Vacuum variable, 3000 pF maximum,
3 kV, Jennings UCSL-3000 (loading) C8-0.0014µF, 10 kV (EM)
C9-0.005µF, 15 kV oil capacitor
C10,11-500 pF. 20 kV “TV doorknob,” Centralab
CI 2-0.05 µF, 20 A feedthrough, Sprague C13,14,15-1000 pF feedthrough
C16-0.1 IF, 100 volts DC disc ceramic D1-Silicon diode, 1 N4148 or 1 N914 F1-3Afuse
J1-BNC chassis mount
J2-N chassis mount
J3-HN chassis mount, used with RG213 for 3 kV feed
J4-Chassis-mount AC outlet, Amphenol 160-2N, AL part no. 713-5202
Lamp-No. 47 6.3 volt lamp
L1-3.5 turns no. 10 silver-plated wire, 1 inch ID, 2 inches long, self-supporting
L2-24 H roller inductor, Johnson 226-1 (EM, CC)
M1-1 mA DC meter movement, filament voltage
R1-50 ohm, 60 watt noninductive resistor,thirty 1500 ohm 2 watt carbon composition resistors connected in parallel
R2-1000 ohm, 2 watt carbon composition
R3-100 ohm, 2 watt carbon composition
R4-220 K, 2 watt carbon composition
R5-25 ohm, 25 watt wirewound adjustable
R6-1000 ohm, 2 watt carbon or wirewound potensiometer
R7-10,000 ohm, 2 watt carbon composition
RFC1-28 turns no. 18 wire solenoid wound
on 0.5 inch OD by 2.5 inch ceramic form (plate choke)
RFC2-Plate choke, surplus part (suggest B&W 801)
RFC3-74 turns no, 20 wire solenoid wound on 0.75 OD by 3 inch ceramic form
RFC4-9 µH 15 A RF choke, surplus part(suggest Dale no. IH15, HF no. 18-105)
RFC5-1.0 mH RF choke
RFC6-10 H, 1 A RF choke
RT1-Surgistor, GC 25-933-S
S1-Air flow switch, Rotron 2A-1 350
SK1-Eimac socket, Sk810B; chimney SK-806 (BY)
T1-Transformer, 6.3 volts AC at 10 A secondary, Thordarson 21 F12, AL 704-2019
Z1-Zener diode, 6.2 volts, 1 N473

The frequency range of this amplifier is 1.8 to 54 MHz. The amount of RF drive needed for full output is around 30 W. grid compartment (R1, R2, RFC4, RFC5) must be protected from the other circuitry-especially the output circuitry.

The post 1500 Watt RF Amplifier Circuit appeared first on Amplifier Circuit Design.

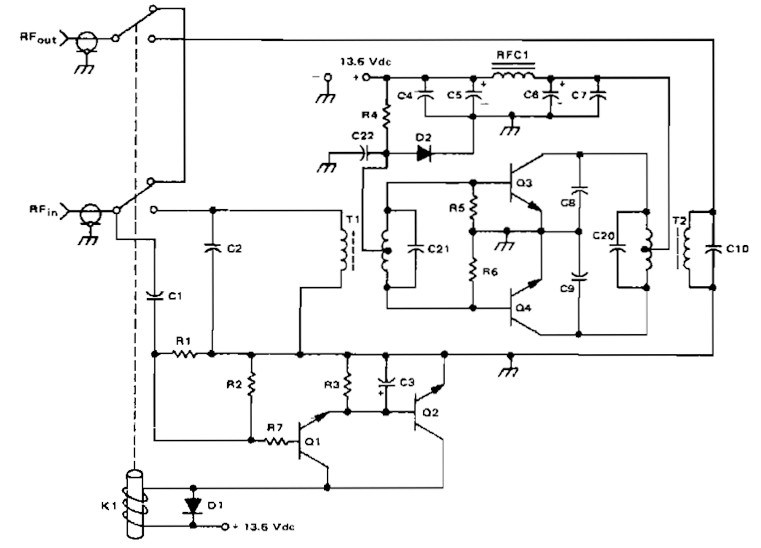

Amateur Radio Linier Amplifier parts list :
C1	: 33pF Dipped Mica
C2	: 18 pF Dipped Mica
C3	: 10 uF 35 Vdc for AM operation,
	  100 uF 35 Vdc for SSB operation.
C4	: .1 uF Erie
CS	: 10 pF 35 Vdc-Electrolytic
C6	: 1  µF Tantalum
C7	: .001 pF Erie Disc
C8, 9	: 330 pF Dipped Mica
R1	: 100 k ohm 1/4 W Resistor
R2, 3	: 10 k ohm 1/4 W Resistor
R4	: 33 k ohm 5W Wire Wound Resistor
R5, 6	: 10 ohm 1/2 W Resistor
R7	: 100 S2 1/4 W Resistor
RFC1	: 9 Ferroxcube Beads on #18 AWG Wire
D1	: 1N4001
Q2	: 1N4997
Q1, Q2	: 2N4401
Q3, 4	: MRF454
T1, T2	:16:1 Transformers
C20	: 910 pF Dipped Mica
C21	: 1100 pF Dipped Mica
C10	: 24 pF-Dipped Mica
C22	: 500 µF 3 Vdc Electrolytic
K1	: Potter & Brumfield
KT11A 	: 12 Vdc Relay or Equivalent

The post 140W ( PEP ) Amateur Radio Linier Amplifier (2 -30 Mhz) appeared first on Amplifier Circuit Design.
