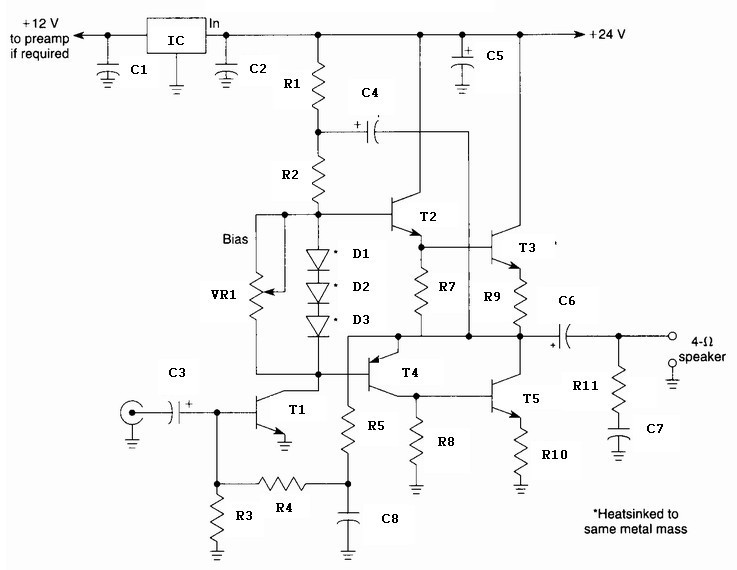

10 Watt Audio Amplifier circuit diagram. This is general purpose 10-W power audio amplifier circuit for medium power amplifier or use a modulation in the AM transmitter. For higher power up to 30 W can be obtained by increasing the voltage and change the bias resistor value.
